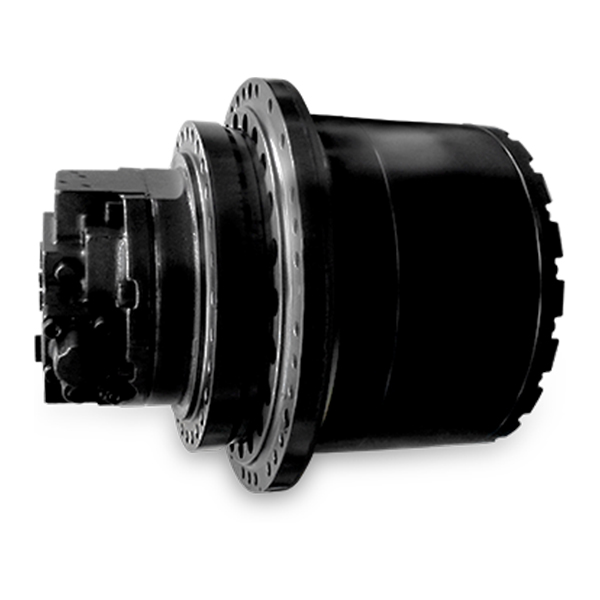

Travel Motor
Strong power, optimal driving speed, the highest level of durabilityThe robust design of the Travel Motor displays strong power and highest performance and it secures the strong traction power and durability.
Specifications
Option available
| Items | Travel Motor | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| HT14A (M77/R23) |
HT14C (M81/R24) |
HT21A (M172/R42) |
HT21C (M155/R46) |
HT25A (M182/R45) |
HT30A (M283/R63) |
HT33A (M283/R68) |
HT38A (M283/R79) |
HT43A (M283/R87) |
HT50A (M282/R99) |
|
| Displacement (cc/rev) |
77 | 80.8 | 171.2 | 155.4 | 182.4 | 282.6 | 282.6 | 282.6 | 282.6 | 281.7 |
| Working Pressure (kgf/㎠) |
350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 360 | 360 |
| Reduction ratio | 53.706 | 53.706 | 44 | 53.706 | 44 | 39.866 | 43.091 | 50.11 | 53.454 | 61.47 |
| Final Torque (Kgf-m) |
2,304 | 2,417 | 4,196 | 4,649 | 4,471 | 6,276 | 6,783 | 7,888 | 8,655 | 9,921 |
Option available
Product features
| Items | Travel Motor | |||
|---|---|---|---|---|
| HT14A (M77/R23) |
HT14C (M81/R24) |
HT21A (M172/R42) |
HT21C (M155/R46) |
|
| Displacement (cc/rev) |
77 | 80.8 | 171.2 | 155.4 |
| Working Pressure (kgf/㎠) |
350 | 350 | 350 | 350 |
| Reduction ratio | 53.706 | 53.706 | 44 | 53.706 |
| Final Torque (Kgf-m) |
2,304 | 2,417 | 4,196 | 4,649 |
| Items | Travel Motor | ||
|---|---|---|---|
| HT25A (M182/R45) |
HT30A (M283/R63) |
HT33A (M283/R68) |
|
| Displacement (cc/rev) |
182.4 | 282.6 | 282.6 |
| Working Pressure (kgf/㎠) |
350 | 360 | 350 |
| Reduction ratio | 44 | 39.866 | 43.091 |
| Final Torque (Kgf-m) |
4,471 | 6,276 | 6,783 |
| Items | Travel Motor | ||
|---|---|---|---|
| HT38A (M283/R79) |
HT43A (M283/R87) |
HT50A (M282/R99) |
|
| Displacement (cc/rev) |
282.6 | 282.6 | 281.7 |
| Working Pressure (kgf/㎠) |
350 | 360 | 360 |
| Reduction ratio | 50.11 | 53.454 | 61.47 |
| Final Torque (Kgf-m) |
7,888 | 8,655 | 9,921 |
-
High Efficiency
- High volumetric and mechanical efficiency across low/high speed and low/high pressure ranges
-
High Reliability and Load Capacity
- Extensive experience based on mass production applications within group companies
- High reliability ensured through long-life design under heavy-load conditions
-
Compact Design
- Integrated structure with embedded motor valves and parking brake
-
Fine Operability
- Precise controllability enabled by high-precision internal components
