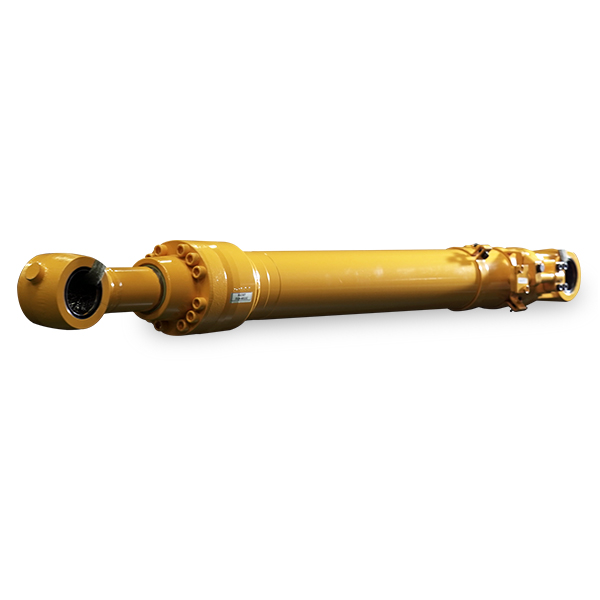

Hydraulic Cylinder
Use the hydraulic pressure from the MCV, flexibility and precision, superb durabilityHydraulic cylinders accurately transfer the hydraulic energy of high pressure from the MCV into the mechanical energy.
Specifications
Option available
| Applicable Products |
Tube | Rod | Stroke | Specification | |||
|---|---|---|---|---|---|---|---|
| Min | Max | Min | Max | Min | Max | Max | |
| Excavators | 80 | 190 | 50 | 130 | 214 | 1,820 | 400 |
| Wheeloders | 100 | 200 | 65 | 110 | 510 | 863 | 300 |
| Forklifts | 50 | 215 | 28 | 130 | 40 | 3,739 | 250 |
| Others | 60 | 125 | 40 | 65 | 225 | 990 | 250 |
Option available
Product features
| Applicable Products |
Tube | Rod | ||
|---|---|---|---|---|
| Min | Max | Min | Max | |
| Excavators | 80 | 190 | 50 | 130 |
| Wheeloders | 100 | 200 | 65 | 110 |
| Forklifts | 50 | 215 | 28 | 130 |
| Others | 60 | 125 | 40 | 65 |
| Applicable Products |
Stroke | Specification | |
|---|---|---|---|
| Min | Max | Max | |
| Excavators | 214 | 1,820 | 400 |
| Wheeloders | 510 | 863 | 300 |
| Forklifts | 40 | 3,739 | 250 |
| Others | 225 | 990 | 250 |
-
Outstanding Durability and Long-Life Design
- High-temperature durability sealing system and long-life pin bushing applied
- Corrosion-resistant hard chrome plated piston rod for enhanced durability
-
Compact and Lightweight through High-Pressure Design
- Achieves downsizing and weight reduction through high-pressure design across all product specifications
-
Customized Design for Various Operating Environments
- Tailor-made design to meet diverse customer requirements and specific operating conditions
-
Environmentally Friendly Solution
- Eco-friendly product achieved through the use of sustainable materials and manufacturing processes
