Transmission

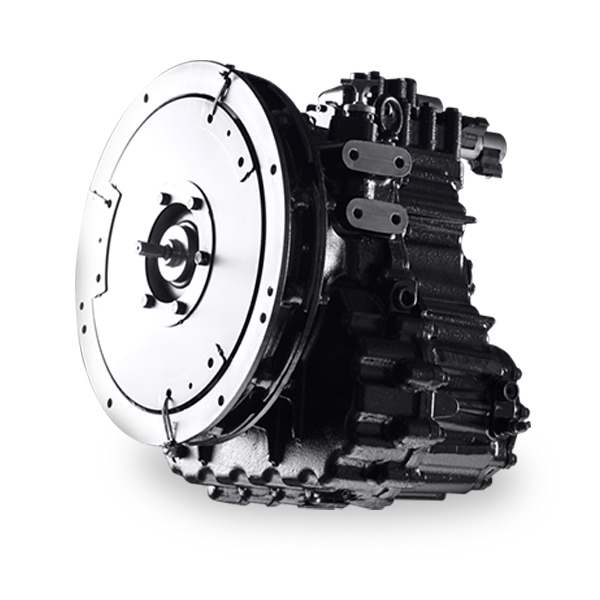

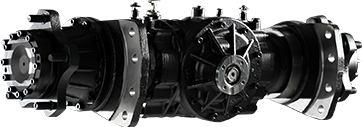

Converting the rotatory energy of the engine into the rotation power required by the complete equipmentTransmission converts the engine's rotational energy and delivers to achieve the maximum torque and the output that suits the working environment of the equipment.
Specifications
Option available
| Application | 1.5~2.0 ton class Forklift |
2.5~3.5 ton class Forklift |
4~5 ton class Forklift |
6~10 ton class Forklift |
|
|---|---|---|---|---|---|
| Max. Input power(kW) | 55 | 55 | 75 | 120 | |
| Max. Input torque(N-m) | 620 | 620 | 1,020 | 2,385 | |
| Type | Full floated & Power shift |
Full floated & Power shift |
Full floated & Power shift |
Full floated & Power shift |
|
| Torque Converter | Type | 3-element, 1-stage, 2-phase | 3-element, 1-stage, 2-phase | 4-element, 2-stage, 3-phase | 4-element, 2-stage, 3-phase |
| Stall ratio | 3.06 | 2.9 | 2.25 | 5.3±7% | |
| PTO | Ratio | 1 | 1 | 1 | 1 |
| Max. Torque (N-m) |
130 | 130 | 350 | 350 | |
| Inching control | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Parking brake | Type | Wet multi disc & SAHR | Wet multi disc & SAHR | - | - |
| Max. Torque (N-m) |
3,150 | 4,400 | - | - | |
| Gear ratio | Forward | 0.878 | 1.633 | F1 : 2.667 / F2 : 1.024 | F1 : 2.456 / F2 : 0.946 |
| Reverse | 0.878 | 1.633 | 1.838 | 2.494 | |
Option available
Product features
| Application | 1.5~2.0 ton class Forklift |
2.5~3.5 ton class Forklift |
|
|---|---|---|---|
| Max. Input power(kW) | 55 | 55 | |
| Max. Input torque(N-m) | 620 | 620 | |
| Type | Full floated & Power shift |
Full floated & Power shift |
|
| Torque Converter | Type | 3-element, 1-stage, 2-phase | 3-element, 1-stage, 2-phase |
| Stall ratio | 3.06 | 2.9 | |
| PTO | Ratio | 1 | 1 |
| Max. Torque (N-m) | 130 | 130 | |
| Inching control | Hydraulic | Hydraulic | |
| Parking brake | Type | Wet multi disc & SAHR | Wet multi disc & SAHR |
| Max. Torque (N-m) | 3,150 | 4,400 | |
| Gear ratio | Forward | 0.878 | 1.633 |
| Reverse | 0.878 | 1.633 | |
| Application | 4~5 ton class Forklift |
6~10 ton class Forklift |
|
|---|---|---|---|
| Max. Input power(kW) | 75 | 120 | |
| Max. Input torque(N-m) | 1,020 | 2,385 | |
| Type | Full floated & Power shift |
Full floated & Power shift |
|
| Torque Converter | Type | 4-element, 2-stage, 3-phase | 4-element, 2-stage, 3-phase |
| Stall ratio | 2.25 | 5.3±7% | |
| PTO | Ratio | 1 | 1 |
| Max. Torque (N-m) | 350 | 350 | |
| Inching control | Hydraulic | Hydraulic | |
| Parking brake | Type | - | - |
| Max. Torque (N-m) | - | - | |
| Gear ratio | Forward | F1 : 2.667 / F2 : 1.024 | F1 : 2.456 / F2 : 0.946 |
| Reverse | 1.838 | 2.494 | |
-
High-Efficiency Power Transmission
- High-efficiency torque converter with a high torque ratio
-
Durability and Perceived Quality
- Durable performance that maintains consistent shift quality over time
- Smooth driving performance with shock-free shifting
-
Compact Design
- Integrated structure with embedded P.T.O
-
Proven Quality Stability
- Stable quality ensured through extensive mass-production application experience
