드라이브유닛

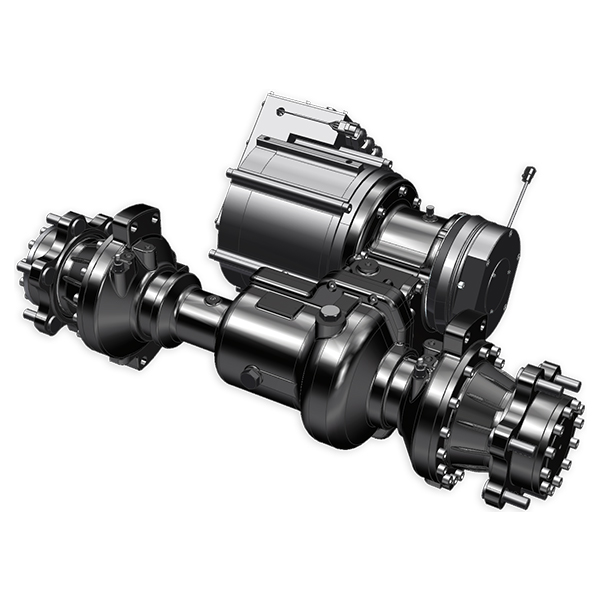

Drive Unit 고출력, 고효율, 저소음 설계를 통한 최고의 구동성능드라이브 유닛(Drive Unit)은 고효율 저소음화 시스템을 통하여, 모터에서 전달받은 회전력을 최적으로 휠에 전달합니다.
사양
Option available
| Application | 1.5~2.0 ton class Forklift |
2.5~3.5 ton class Forklift |
|
|---|---|---|---|
| Motor | Max. Input power(kW) | 32 | 50 |
| Max. speed(RPM) | 5,100 | 5,000 | |
| Max. Input torque(N-m) | 200 | 330 | |
| Travle motor quantity | Dual | Single | |
| Max. Output torque(N·m) | 5,350 | 9,200 | |
| Max. Static Axial load(N) | 60,000 | 176,500 | |
| Parking brake | Type | Electro magnetic / Lever * | Electro magnetic |
| Max. Torque (N-m) | 3,210 | 5,598 | |
| Service brake | Type | Wet multi disc | Wet multi disc |
| Max. Torque (N-m) | 13,380 | 16,580 | |
| Gear ration | Input | 4.458 | 6.818 |
| Hub reduction | 6 | 4.105 | |
Option available
제품특징
| Application | 1.5~2.0 ton class Forklift |
2.5~3.5 ton class Forklift |
|
|---|---|---|---|
| Motor | Max. Input power(kW) | 32 | 50 |
| Max. speed(RPM) | 5,100 | 5,000 | |
| Max. Input torque(N-m) | 200 | 330 | |
| Travle motor quantity | Dual | Single | |
| Type/Mass mount | 5,350 | 9,200 | |
| Type/Mass mount | 60,000 | 176,500 | |
| Parking brake | Type | Electro magnetic / Lever * | Electro magnetic |
| Max. Torque (N-m) | 3,210 | 5,598 | |
| Service brake | Type | Wet multi disc | Wet multi disc |
| Max. Torque (N-m) | 13,380 | 16,580 | |
| Gear ration | Input | 4.458 | 6.818 |
| Hub reduction | 6 | 4.105 | |
-
고성능 기반의 고효율 설계 (High‑Performance, High‑Efficiency Design
- 고출력, 고효율 및 제어 정밀도가 높은 PM 모터 적용
(Apply high power & efficiency & enhanced controllability permanent magnet type motor)
- 고출력, 고효율 및 제어 정밀도가 높은 PM 모터 적용
-
높은 내구 신뢰성 (High Durability Reliability)
- 반영구적, 고용량 습식 서비스 브레이크 적용 (Apply semi-permanent & high capacity wet type service brake)
- 고용량의 컴팩트 유성기어 시스템 기반 고강도·내구 설계 (Compact Planetary Gear System with High Strength and Durability)
-
사용자 편의성 향상 (Enhanced Operator Convenience)
- 파킹 브레이크 옵션 선택가능 (Parking Brake option selectable)
