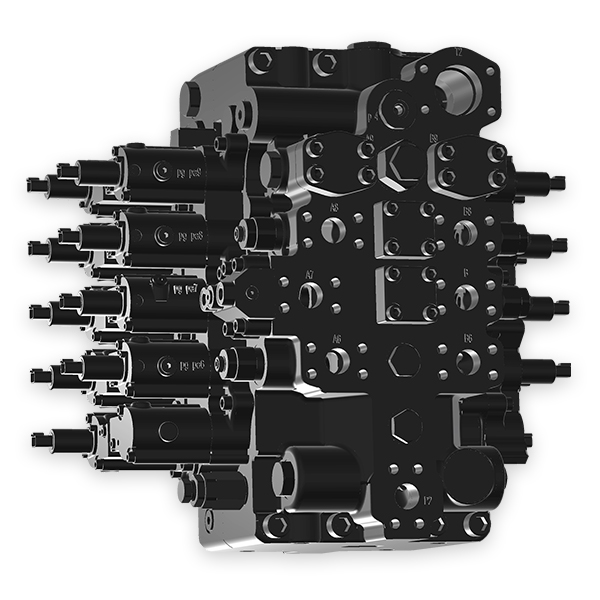

MCV
Main Control Valve 탁월한 운전자 조작성, 뛰어난 전달력, 연비저감중장비 부품 가운데 핵심 부품인 MCV(Main Control Valve)는 최적의 유압회로설계와 압손저감 기술을 바탕으로 탁월한 운전자 조작성과 연비저감 성능을 구현하였습니다.
사양
Option available
| Items | Main Control Valve | ||||||
|---|---|---|---|---|---|---|---|
| SCV28N | SCV28H | SCV35H | HCV200 | DCV300 | DCV400 | DCV500 | |
| Control Type |
NFC (Hydraulic Type) |
NFC (Hydraulic Type) |
NFC (Hydraulic Type) |
FEH (Hydraulic Pilot & EPPR operation) |
NFC/VBO/FEH (Hydraulic Pilot & EPPR operation) |
VBO/FEH (Hydraulic Pilot & EPPR operation) |
VBO/FEH (Hydraulic Pilot & EPPR operation) |
| Rated Condition (Flow/ Pressure) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
| Spool Size/ Stroke |
Φ28 / 10 mm | Φ28 / 10 mm | Φ35 / 13 mm | Φ24 / 10 mm | Φ28 / 10 mm | Φ32 / 10 or 12 mm | Φ36 / 13 mm |
| Application (Ton) |
21~35 | 21~35 | 36~80 | 11~20 | 21~30 | 30~35 | 36~80 |
| ETC |
• Two Block (Back to Back) • Travel straight function • Boom & arm holding function • Logic & priority function • By-Pass Cut (Bucket & Option) |
• Two Block (Back to Back) • Travel straight function • Boom & arm holding function • By-Pass Cut (Bucket Only) |
• Two Block (Back to Back) • Travel straight function • Boom & arm holding function • Logic & priority function • By-Pass Cut (Bucket & Option) |
• Mono Block • Travel straight Function • Boom , Arm, Bucket holding function • Logic function • Up to Add 2 Option available • Option Cut Function |
• Mono Block • Travel straight function • Boom , Arm holding function • Logic & priority function • By-Pass Cut (Bucket & Option) • Up to Add 2 Option available |
• Mono Block • Travel straight function • Boom , Arm, Bucket holding function • Logic & priority function • By-Pass Cut (Bucket & Option) • Up to Add 1 Option available |
• Two Block (Back to Back) • Travel straight function • Boom , Arm holding function • Logic & priority function • By-Pass Cut (Bucket & Option) |
Option available
제품특징
| Items | Main Control Valve | |||
|---|---|---|---|---|
| SCV28N | SCV28H | SCV35H | HCV200 | |
| Control Type | NFC (Hydraulic Type) |
NFC (Hydraulic Type) |
NFC (Hydraulic Type) |
FEH (Hydraulic Pilot & EPPR operation) |
| Rated Condition (Flow/Pressure) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
| Spool Size/Stroke | Φ28 / 10 mm | Φ28 / 10 mm | Φ35 / 13 mm | Φ24 / 10 mm |
| Application (Ton) |
21~35 | 21~35 | 36~80 | 11~20 |
| ETC |
• Two Block (Back to Back) • Travel straight function • Boom & arm holding function • Logic & priority function • By-Pass Cut (Bucket & Option) |
• Two Block (Back to Back) • Travel straight function • Boom & arm holding function • By-Pass Cut (Bucket Only) |
• Two Block (Back to Back) • Travel straight function • Boom & arm holding function • Logic & priority function • By-Pass Cut (Bucket & Option) |
• Mono Block • Travel straight Function • Boom , Arm, Bucket holding function • Logic function • Up to Add 2 Option available • Option Cut Function |
| Items | Main Control Valve | ||
|---|---|---|---|
| DCV300 | DCV400 | DCV500 | |
| Control Type | NFC/VBO/FEH (Hydraulic Pilot & EPPR operation) |
VBO/FEH (Hydraulic Pilot & EPPR operation) |
VBO/FEH (Hydraulic Pilot & EPPR operation) |
| Rated Condition (Flow/Pressure) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
280LPMx2 350kgf/㎠ (Boost 380kgf/㎠) |
| Spool Size/Stroke | Φ28 / 10 mm | Φ32 / 10 or 12 mm | Φ36 / 13 mm |
| Application (Ton) |
21~30 | 30~35 | 36~80 |
| ETC |
• Mono Block • Travel straight function • Boom , Arm holding function • Logic & priority function • By-Pass Cut (Bucket & Option) • Up to Add 2 Option available |
• Mono Block • Travel straight function • Boom , Arm, Bucket holding function • Logic & priority function • By-Pass Cut (Bucket & Option) • Up to Add 1 Option available |
• Two Block (Back to Back) • Travel straight function • Boom , Arm holding function • Logic & priority function • By-Pass Cut (Bucket & Option) |
-
효율 극대화 (Extremely Efficiency Technologies)
- 유로 압력손실 최소화 설계 기술 적용 (Minimize Pressure Loss)
- 유로 배치 최적화 (Optimized Flow Path)
- 유량 재생 극대화 (Maximized Re-generation Flow)
- 소형화 (Compact Size)
-
높은 신뢰성 (High Reliability Technologies)
- 다중 유압시스템 보호 체계 적용 (Multiple Hydraulic Circuit Protection System)
- 초고압 내구성 검증 수행 (Ultra High Hydraulic Pressure Resistance)
- 장시간 일관된 성능 발휘 (Consistent Performance for Product Life Cycle)
-
향상된 성능 (Enhanced Performance)
- 정확하고 정밀한 제어 가능 (Accurate and Precise Control)
- 전자 제어 시스템 적용 (Electrical Control System)
- 다양한 작업장치 사용 가능 (Various Option Attachment Tool Ready)
